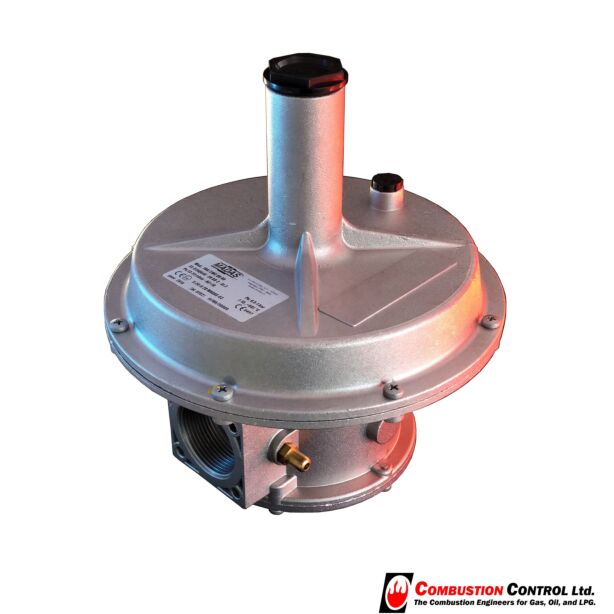

MADAS Gas Filter Regulator DN40 Max Inlet 0.5 - 1bar Max Outlet 13-23mbar
P1 0.5-1 Bar Max inlet
Max Flow Rate at Max Inlet 350(Nm3/h)NG
Max Flow Rate at Max Inlet 175(Nm3/h)LPG
Max Flow Rate is dependent on differential Pressure
Outlet Spring change
Spring MO-0500 8-13Mbar ID3080
Spring MO-0800 13-23Mbar ID3124
Spring MO-0850 20-36Mbar ID3081
Spring MO-0970 33-58mbar ID3125
Spring MO-1000 55-100mbar ID3089
Spring MO-1370 90-190mbar ID3123
Warehouse Location: C7G, H11 & H12
Actual Weight: 3.4 kg
| SKU | ID3078 |
|---|---|
| Brand | Madas |
| Gas Type | LPG, Natural Gas, Air |
| Maximum inlet pressure | up to 1 bar |
| Nominal size | DN40mm |
| Overpressure protection type | No overpressure protection |
 | madas3074 | 2.4 MB | Download |
