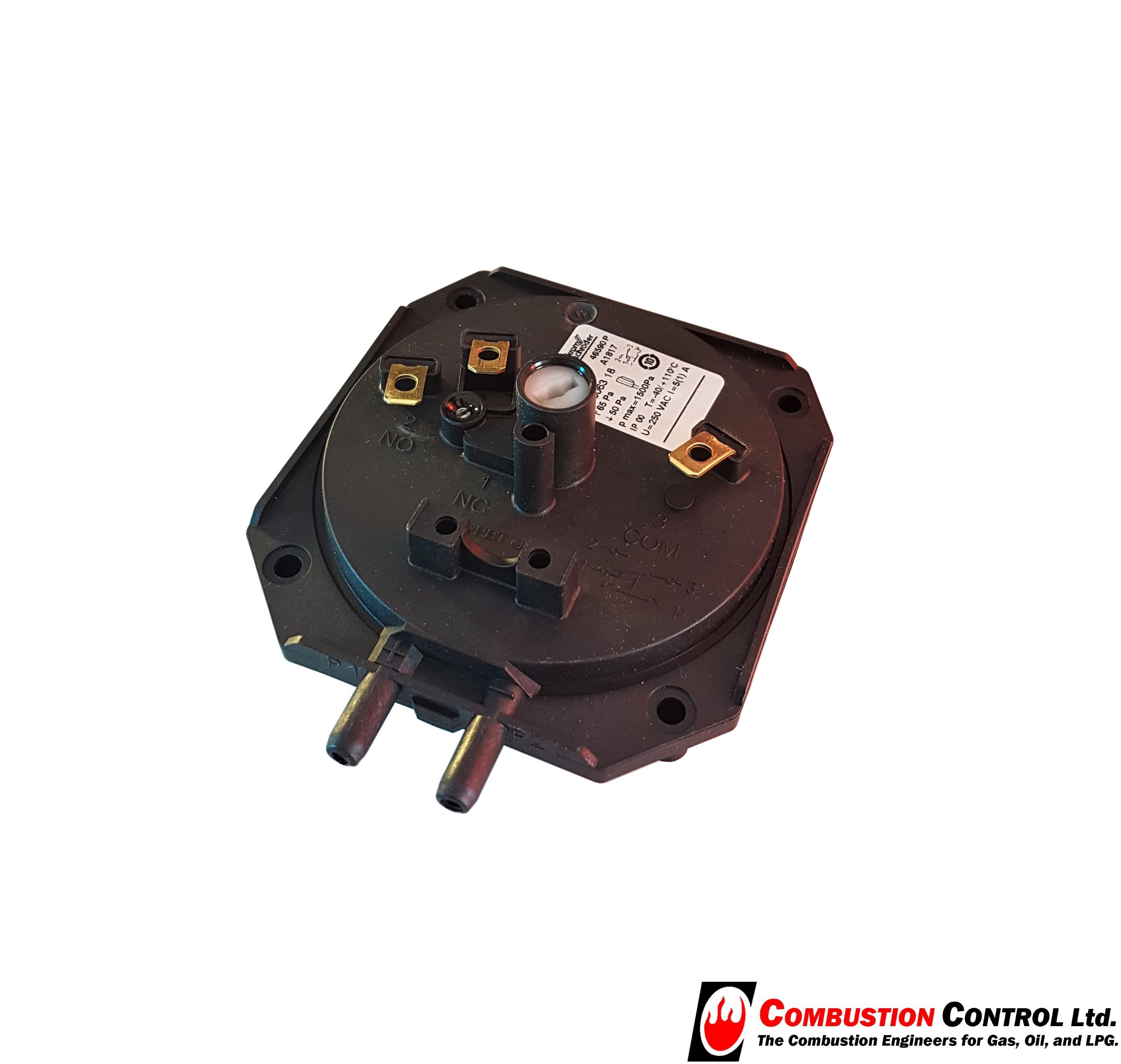

Kromschroder Air Pressure switch, Range 450-2000mbr
High Temperature Pressure Switch
- Used for monitoring positive, negative or differential air or flue gas pressures
- DL .. EH range: 45 - 200Pa

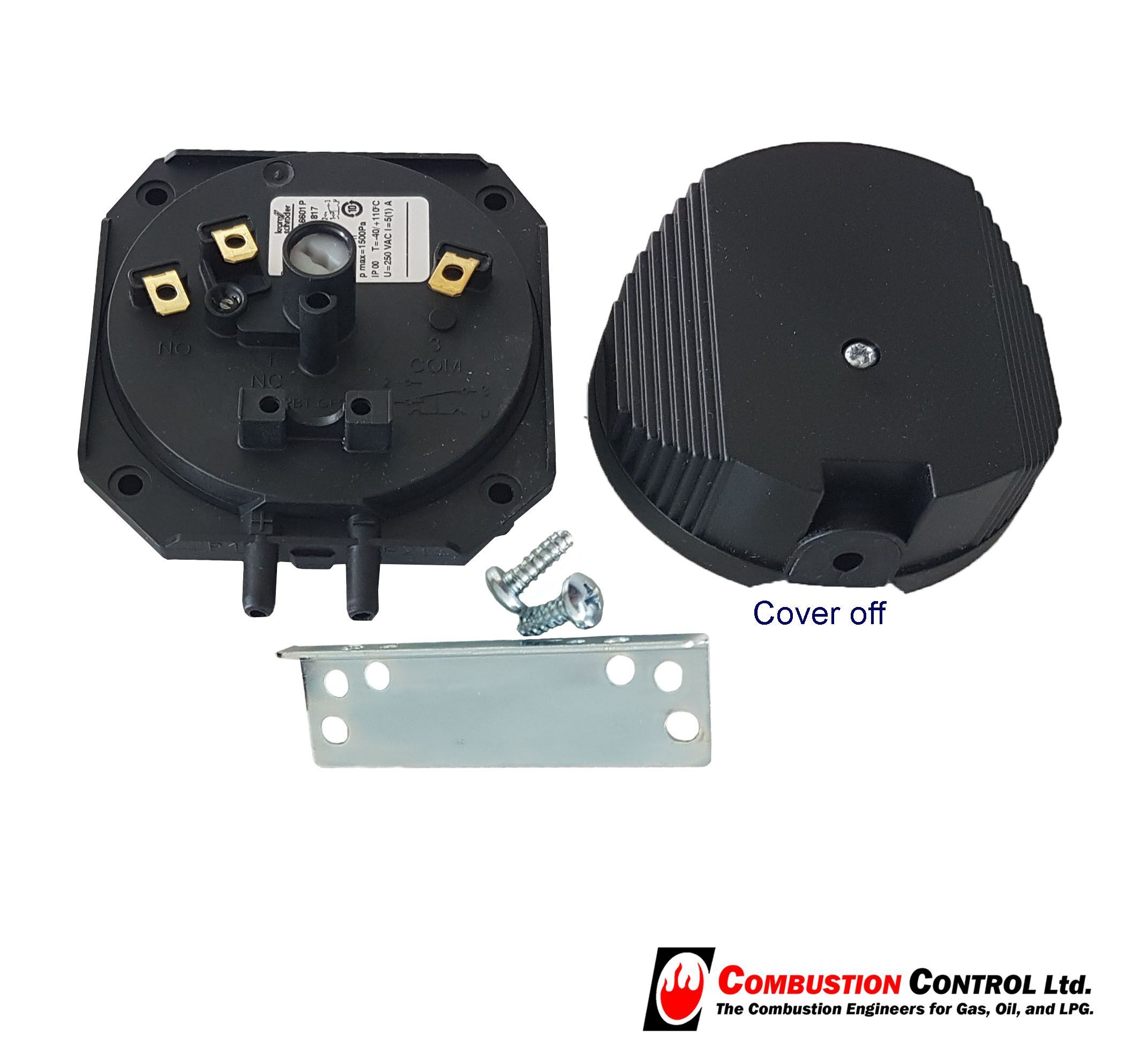

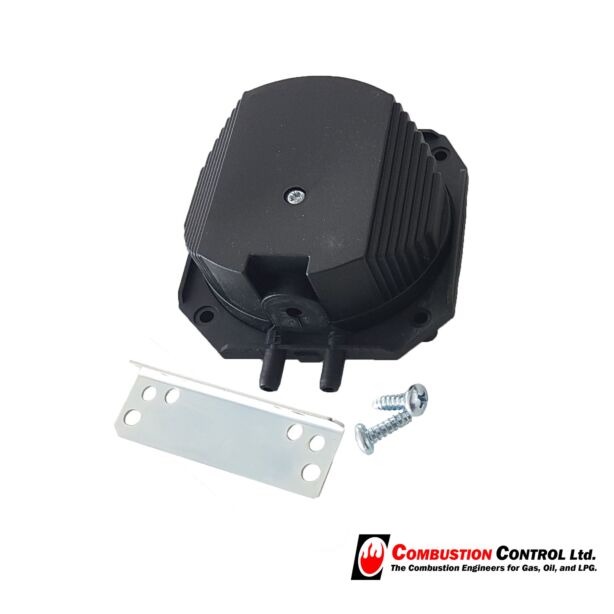

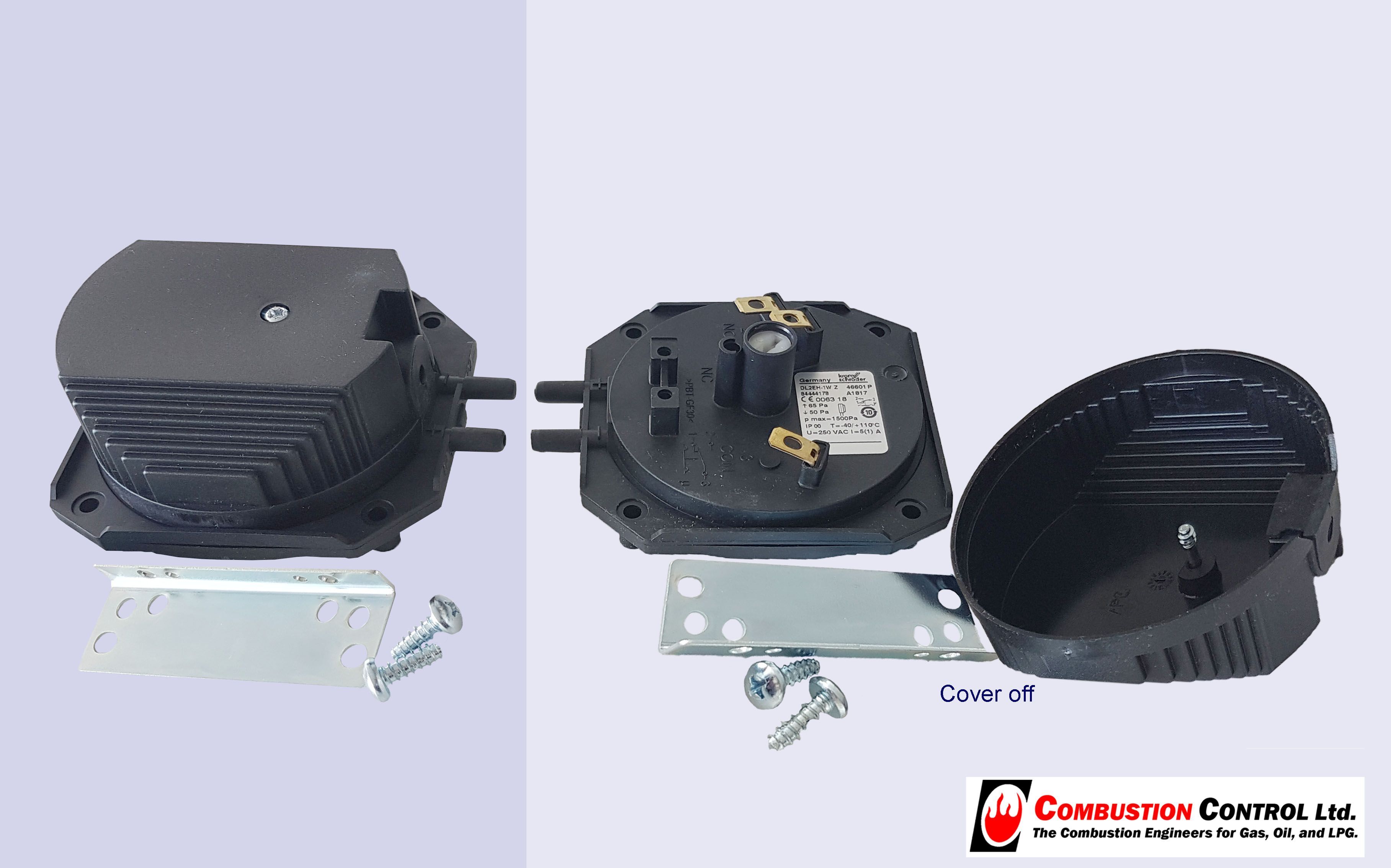

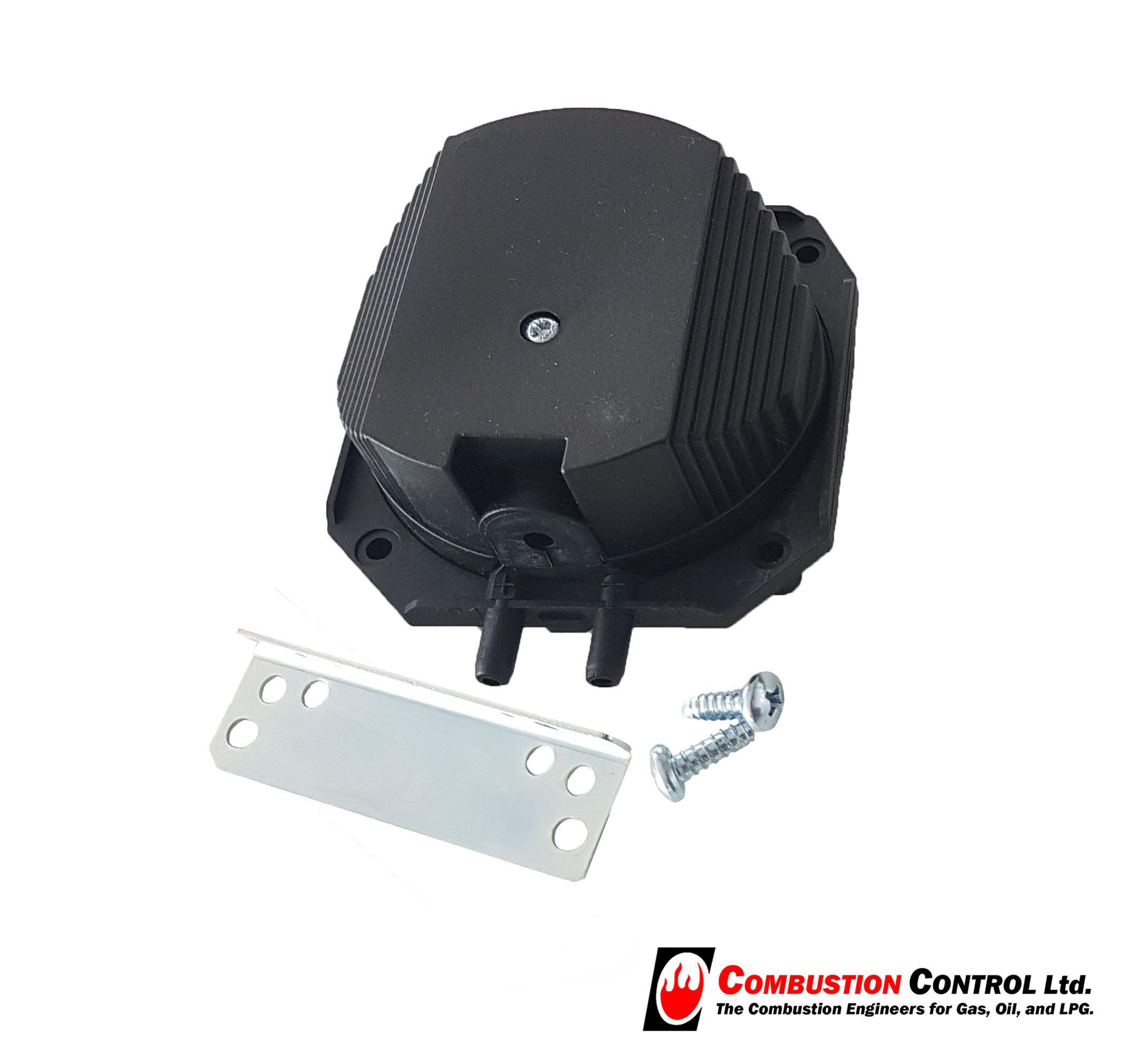

- Supplaed with L-angle bracket
- max inlet pressure - 1500Pa
- Permitet ambient temperature in operation: -40C to +110C (-40F to +230F)
Storage temperature: -20C to +60C (-4F to +140F)
- Weight: 83g (29oz)
Warehouse Location: W20
| SKU | ID2640 |
|---|---|
| Brand | Kromschroder |
| Range | +/-45-200 Pa |
| Fluid Type | Air, Exhaust gas, Flue |
| Mech. Connection | Push on barb |
| Elec. Connection | Hard Wired |
 | Krom DL switch | 4.9 MB | Download |
