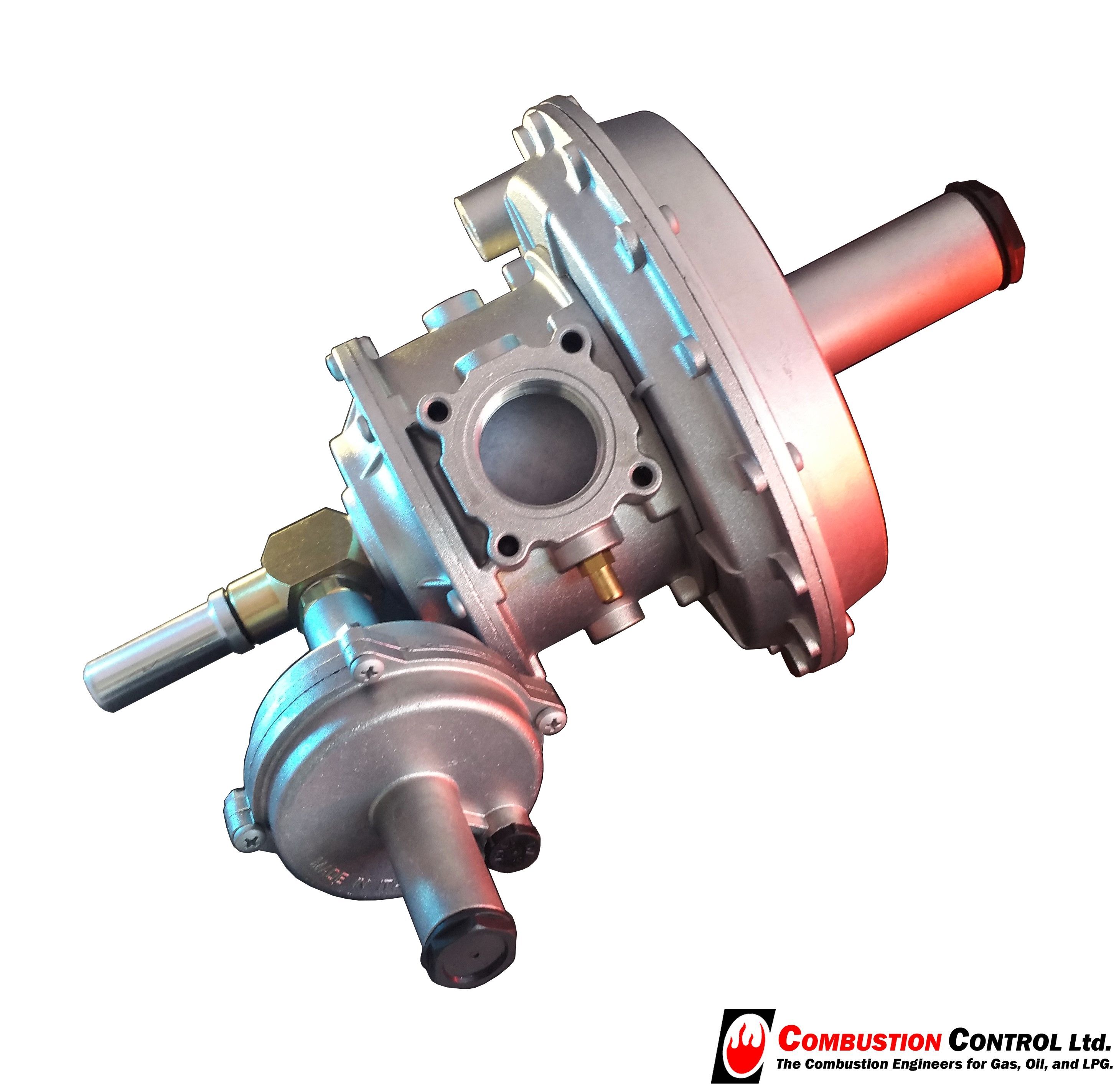

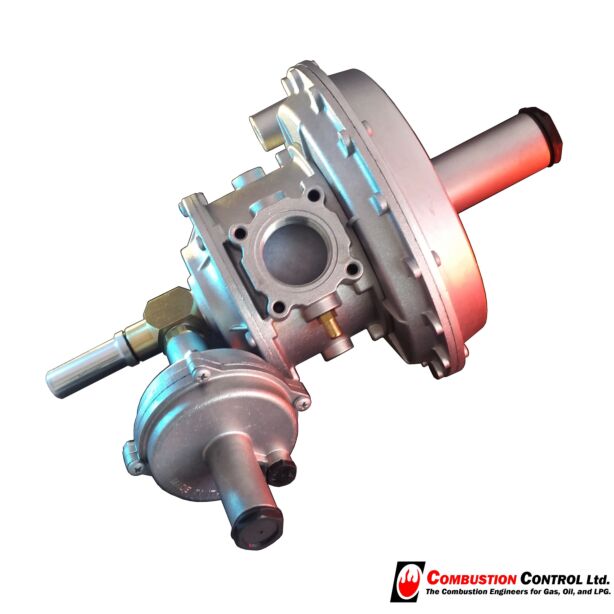

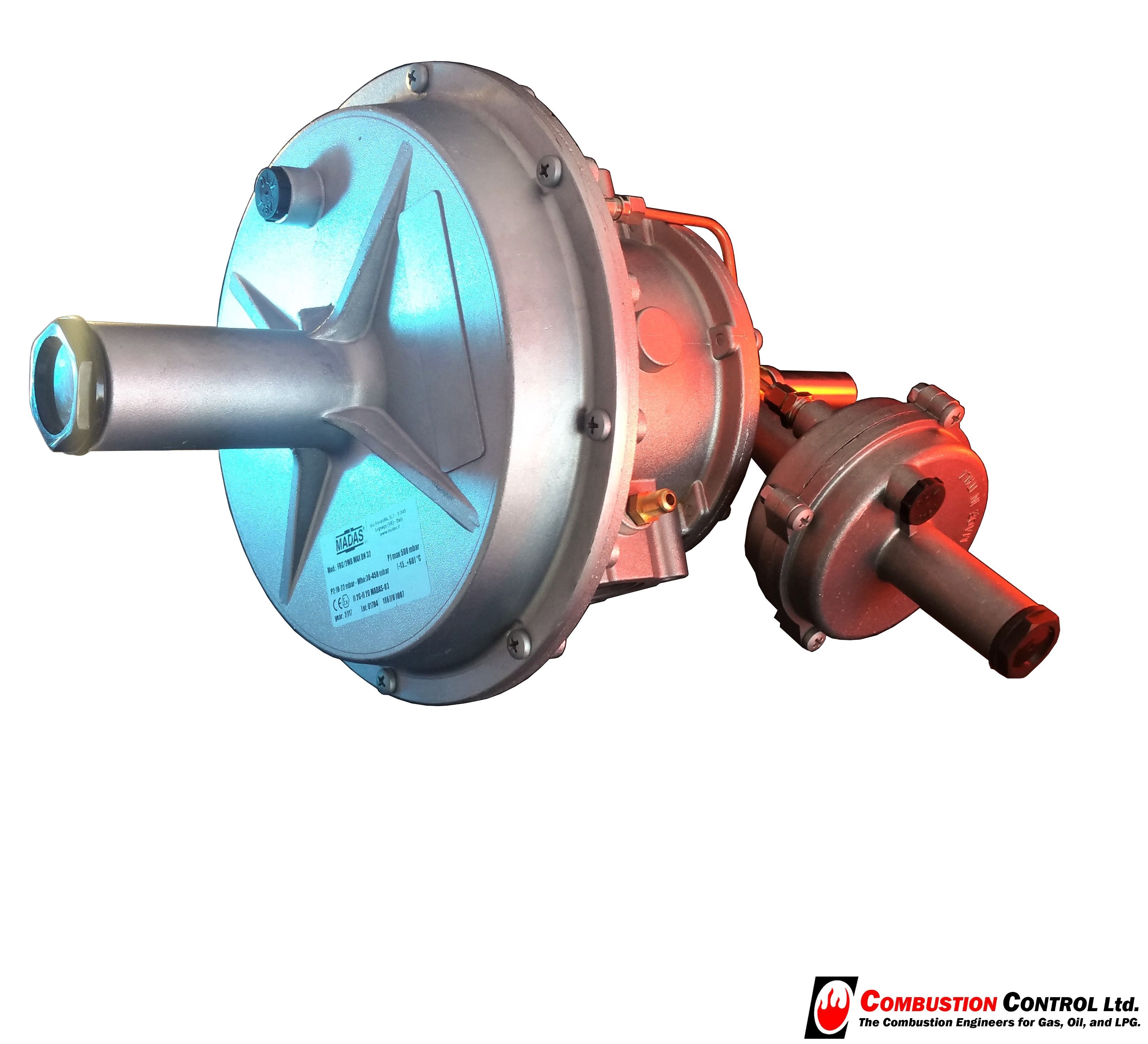

MADAS FRG/0.5MB MAX DN32OPSO GAS FILTER REGULATOR
Max inlet: 0.5 bar
Outlet Pressure: 5-23mbar
OPSO Spring range: 30-450mbar
Max Flow Rate st Max Inlet 300(Nm3/h)NG
Max Flow Rate at Max Inlet 150(Nm3/h)LPG
Max Flow Rate is dependent on differential Pressure
Outlet Spring Change
Spring MO-0825 10-22mbar ID 3066
Spring MO-0900 20-40mbar ID 3088
Spring MO-1000 40-85mbar ID 3089
Spring MO-1300 85-180mbar ID 3121
Spring MO-2550 130-200mbar ID 1944
Warehouse Location: H3, H5
Actual Weight: 4.4 kg
| SKU | ID3085 |
|---|---|
| Brand | Madas |
| Gas Type | LPG, Natural Gas, Air |
| Maximum inlet pressure | up to 100mbar, up to 300mbar, up to 350mbar, up to 0.5bar |
| Nominal size | DN32mm |
| Overpressure protection type | OPSO |
